• LIMITED QTY

Ranger 1.0

  • 750 Watts Power
  • 20Ah Battery
View specs
Select color: Matte Black

Battery Capacity

$2,499 Sold out

Example payment is based on the listed product price(s) assuming a 48 month term loan and a 9.99% APR. Subject to approval of credit application. Rates range from 0.00% to 29.99% APR. APRs will vary depending on credit qualifications, loan amount, and term. Bread® pay over time loans are made by Comenity Capital Bank.

Free Shipping ($200+ value)

Free shipping on all e-bikes in the Continental U.S.

Professional In-Store Or Easy DIY Assembly

Choose between:
a) Delivery to your local authorized Magnum Dealer with in-store assembly (included);
b) Home delivery & DIY assembly (included); or
c) Home delivery with at-home assembly by a local bike mechanic (starting at $149).

Expert Service & Support

There are so many ways to get in touch with our Support Team! Chat, call, or drop us an email.

Warranty Protection Up To 5 Years

1-Year limited warranty (included), plus extended product protection plans available for 2, 3 and 5 years (starting at $210).

The Magnum Ranger

The Magnum Ranger will take you where your heart desires - in comfort and style! Its comfortable riding position places the rider sitting slightly reclined and closer to the ground with pedals out front. A large, plush saddle and wide tires for stability and comfort complete the stylish, carefree Magnum Ranger experience.

Highlights

  • Category Cruiser, Fat Tire
  • Class Can be configured to a Class 1, 2, or 3 E-Bike.
  • Frame Type High-step, Cruiser
  • Seating Cruise
  • Perfect For Paved / Light Trails / Beach

THE BATTERY.

The Ranger’s jumbo, 48W battery can go the distance, and it will power a range of up to 65 miles, depending on cargo weight, wind and terrain variables.

20Ah

65 Miles (105 Kilometers) Max Range

10 Hours Charge Time

FEEL THE POWER

Power your ride with stability and comfort.

The powerful Das-Kit 750W (1000W peak output) geared rear hub motor perfectly complements this sturdy, stable and comfortable pedal-forward fat tire bike. It will get you over steeper hills and dunes with ample power and abundant style.

Component Overview

Motor Brand

Das-Kit

Motor Type

Rear Hub-Drive

Motor Nominal Output

750 Watts

Motor Peak Output

1000 Watts

Battery Brand

N/A

Battery Voltage

48 Volts

Battery Ah

20Ah

Battery Wh

840Wh

Battery Chemistry

Li-NMC

Battery Charge Time (from empty)

10 Hours

Minimum Range

35 Miles (56 Kilometers)

Maximum Range

65 Miles (105 Kilometers)

Display Type

Das-Kit C7, Backlit, Monochrome LCD

Display Readouts

Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time

Display Accessories

Drive Mode

Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode

Top Speed

Up to 25 mph (40 km) with pedal assist, up to 20 mph with throttle only

Lights

Independent Front Headlight, Independent Rear Light

Frame material

Aluminum Alloy

Frame size

19.5” (49.5 cm)

Frame Type

Fork Details

Rst Guide Spring Suspension, 80mm Travel With Lockout

Gearing details

Shimano 8-Speed

Shifter Details

Shimano 8-Speed

Crank

Prowheel, Aluminum Alloy, 48T, 170mm

Pedals

Wellgo

Stem

Promax Tool-free Adjustable

Brakes

Tektro Hydraulic Disc Brakes

Grips

Faux Leather

Saddle

Selle Royal with Gel and Dual Spring Suspension

Tire Brand

26 x 4.0

Wheel size

26”

Fenders

Front and Rear Included

Chain

KMC

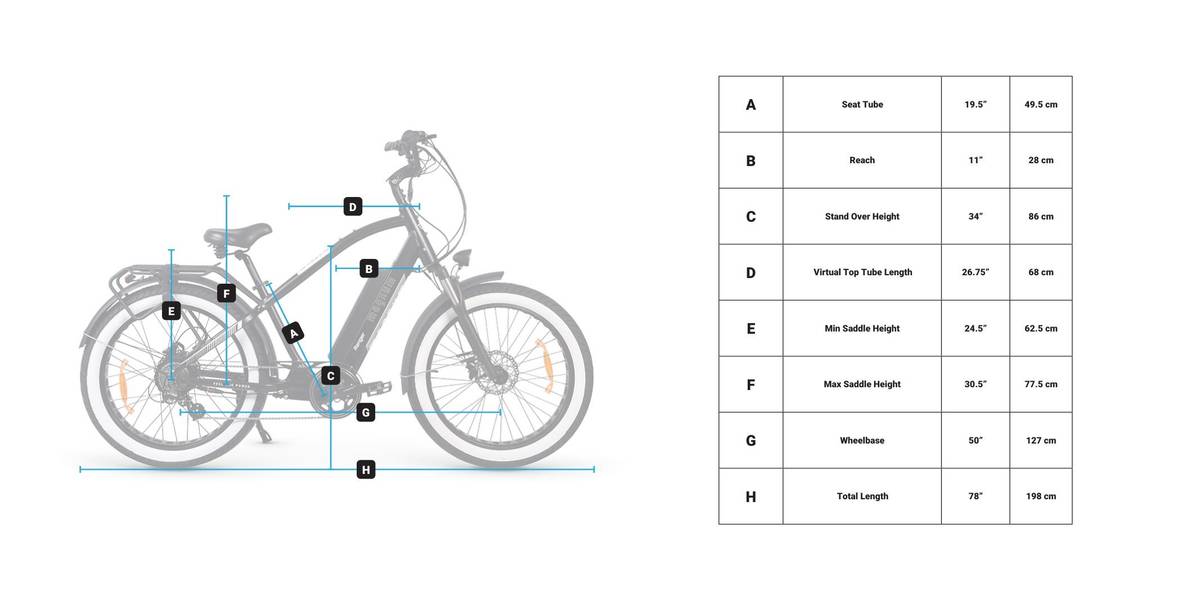

Seat Tube

19.5” (49.5 cm)

Reach

11” (28 cm)

Stand Over Height

34” (86 cm)

Virtual Top Tube Length

26.75” (68 cm)

Min Saddle Height

24.5” (62.5 cm)

Max Saddle Height

30.5” (77.5 cm)

Width

26.5” (67 cm)

Wheelbase

50” (127 cm)

Length

78” (198 cm)

Total Weight

72 lbs (32.66 kg)

Battery Weight

9 lbs (4 kg)

Recommended Minimum Rider Height

5’5”

Kickstand

Center-Mount, Left-Side, Adjustable

Bell

Not Included

Charger

48V / 2A

Front Rack

N/A

Rear Rack

Yes (Included)

Fenders

Front and Rear (Included)

Accessory Mounts

Top Tube Bottle Cage Mount

Ranger 1.0 videos

  • Features Overview

Epic Cycles Details The Many Features Of The Magnum Ranger

The folks at Epic Cycles go over the component details of the Magnum Ranger, a feature-rich, fully-loaded fat tire cruiser bike with ample style to match its utility.
