Cruiser 1.0

  • 500 Watts Power
  • 13Ah Battery
View specs
Select color: Black with Copper Accents

Battery Capacity

$1,999 $1,699
You save $300 (15%)
Sold out

The Magnum Cruiser 1.0

A beautifully designed beach cruiser style electric bike well suited to urban riding or commuting. Powerful 500 watt motor paired with a large 48 volt 13 amp hour battery pack, offers both pedal assist and throttle mode.

Highlights

  • Category Cruiser
  • Class Can be configured to a Class 1, 2, or 3 E-Bike.
  • Frame Type High-step, Cruiser
  • Seating Cruise
  • Perfect For Paved / Light Trails / Beach

THE BATTERY.

The Cruiser’s large, 48W battery can handle all the demands of a cargo bike, and it will power a range of up to 50 miles, depending on cargo weight, wind and terrain variables.

13Ah

50 miles (80 Kilometers) Max Range

6.5 Hours Charge Time

How is range calculated?

CRUISE WITH COMFORT AND STYLE

Ergonomic Pedal-Forward Position

The ergonomic, pedal forward cruiser position lets you cruise the roads in comfort and style. Large, plush saddles and wide tires for stability and comfort complete the stylish, carefree Magnum Cruiser experience.

How does this affect my ride?

Component Overview

Motor Brand

Das-Kit

Motor Type

Geared Rear Hub

Motor Nominal Output

500 Watts

Motor Peak Output

750 Watts

Battery Voltage

48 Volts

Battery Ah

13Ah

Battery Wh

624Wh

Battery Chemistry

Li-NMC

Battery Charge Time (from empty)

6.5 Hours

Minimum Range

25 Miles (40 Kilometers)

Maximum Range

50 miles (80 Kilometers)

Display Type

Das-Kit C7, Backlit, Monochrome LCD

Display Readouts

Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage

Drive Mode

Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode

Top Speed

25 mph with Pedal Assist, 20 mph with Throttle

Lights

Independent Front Headlight, Independent Rear Light

Frame material

Aluminum Alloy

Frame Type

Fork Details

Adjustable Spring Suspension With Lockout

Gearing details

Shimano 8-Speed

Shifter Details

Shimano 8-Speed

Crank

Aluminum Alloy, 52T, 170mm

Pedals

Wellgo

Stem

Tool-free Adjustable

Brakes

Tektro Hydraulic Disc Brakes

Grips

Ergonomic Faux Leather

Saddle

Selle Royal, Brown

Tire Brand

Schwalbe Big Ben, Reflective Sidewall Stripe, 26 x 2.15

Wheel size

26”

Fenders

Front and Rear Included

Chain

KMC

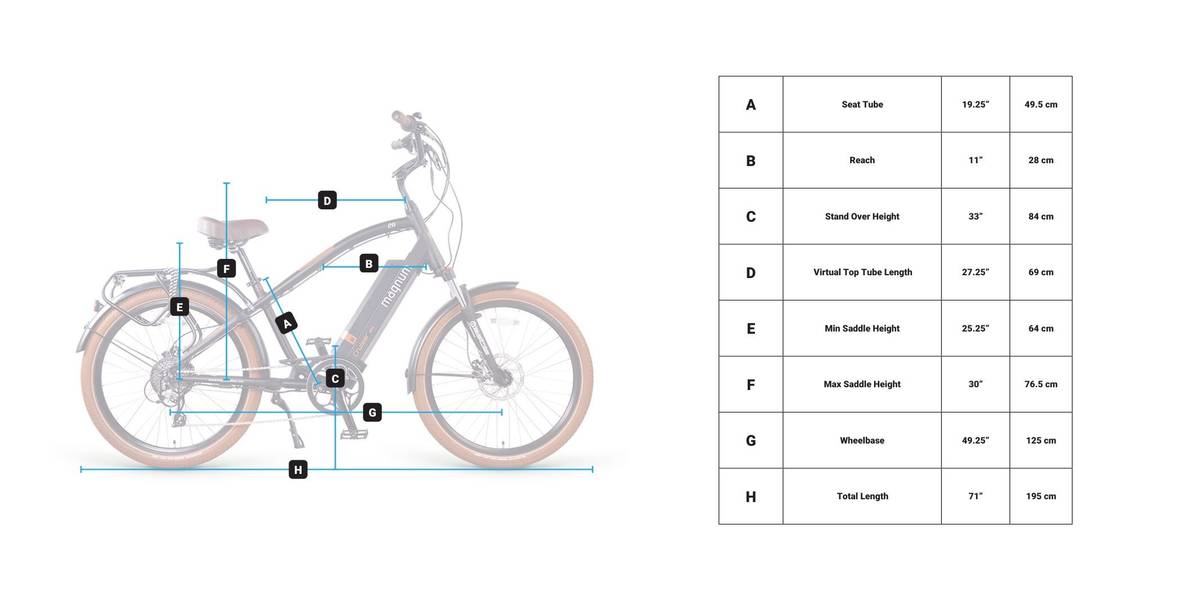

Seat Tube

19.25” (49.5 cm)

Reach

11” (28 cm)

Stand Over Height

33” (84 cm)

Virtual Top Tube Length

27.25” (69 cm)

Min Saddle Height

25.25” (64 cm)

Max Saddle Height

30” (76.5 cm)

Width

26” (66 cm)

Wheelbase

49.25” (125 cm)

Length

71” (195 cm)

Total Weight

63 lbs (25.5 kg)

Battery Weight

9 lbs (4.1 kg)

Recommended Minimum Rider Height

5’5”

Max Load Capacity

300 lbs. (140 kg)

Kickstand

Center-Mount, Left-Side, Adjustable

Bell

Not Included

Charger

48V / 2A

Front Rack

N/A

Rear Rack

Included

Fenders

Included Front and Rear

Accessory Mounts

Front and Rear Fender Mounts, Rear Rack Mount
