Navigator S

  • 500 Watts Power
  • 10Ah Battery
View specs
Select color: White with Blue Accents

Battery Capacity

$1,749 Sold out

Example payment is based on the listed product price(s) assuming a 48 month term loan and a 9.99% APR. Subject to approval of credit application. Rates range from 0.00% to 29.99% APR. APRs will vary depending on credit qualifications, loan amount, and term. Bread® pay over time loans are made by Comenity Capital Bank.

Professional In-Store Or Easy DIY Assembly

Choose between:
a) Delivery to your local authorized Magnum Dealer with in-store assembly (included);
b) Home delivery & DIY assembly (included); or
c) Home delivery with at-home assembly by a local bike mechanic (starting at $149).

Expert Service & Support

There are so many ways to get in touch with our Support Team! Chat, call, or drop us an email.

Warranty Protection Up To 5 Years

1-Year limited warranty (included), plus extended product protection plans available for 2, 3 and 5 years (starting at $210).

The Magnum Navigator S

A beautifully designed, purpose built electric bike well suited to urban riding or commuting. Step-thru frame for easy mounting and dismounting. Powerful 500W 48V power system with a fully integrated battery.

Highlights

  • Category Touring
  • Class Can be configured to a Class 1, 2, or 3 E-Bike.
  • Frame Type Low-step
  • Seating Relaxed
  • Perfect For Paved / Light Trails / Recreation

THE BATTERY.

The Navigator X’s long range battery blends in smoothly with the frame for a sleek look. It powers up to 40 miles depending on variables like body and cargo weight, terrain, wind direction, and pedal assist level.

10Ah

40 Miles (64 Kilometers) Max Range

5 Hours Charge Time

SLEEK, LOW-STEP FRAME

Mount and dismount with ease and graceful style.

The stunning, low-step frame is easy to mount and dismount, and is made of strong and lightweight aluminum.

Das-Kit Monochrome LCD Display

The backlit, monochrome LCD Display from Das-Kit puts information like Power Output, Speed, Battery Level and Odometer right at your fingertips

Tektro Disc Brakes

Tektro disc brakes bring you to a smooth, controlled stop every time

Integrated Front and Rear Lights

Integrated powerful front headlight and rear light (with rear light activated by braking).

Aluminum Rear Rack

The welded aluminum rear rack is part of the bicycle frame for added strength, and it holds your gear securely.

SR Suntour NEX ATB 26” Suspension Fork

The SR Suntour NEX ATB suspension fork soaks up rough pavement with ease.

Adjustable Reach Front Stem

The adjustable stem accommodates riders of all shapes and sizes to provide a safe and comfortable position on the bike.

Component Overview

Motor Brand

Das-Kit

Motor Type

Rear Gear Hub Motor

Motor Nominal Output

500 Watts

Motor Peak Output

750 Watts

Battery Brand

N/A

Battery Voltage

48V

Battery Ah

10Ah

Battery Wh

480Wh

Battery Chemistry

Li-NMC

Battery Charge Time (from empty)

5 Hours

Minimum Range

20 Miles (32 Kilometers)

Maximum Range

40 Miles (64 Kilometers)

Display Type

Das-Kit C7, Backlit, Monochrome LCD

Display Readouts

Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage

Display Accessories

Drive Mode

Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode

Top Speed

25 mph with Pedal Assist, 20 mph with Throttle

Lights

Integrated Front and Rear Lights

Frame material

Aluminum Alloy

Frame size

17” (43 cm)

Frame Type

Fork Details

SR Suntour NEX ATB 26”

Gearing details

Shimano 7-Speed

Shifter Details

Shimano 7-Speed

Crank

Das-Kit Aluminum Alloy

Pedals

Wellgo

Stem

Promax Tool-Free Adjustable

Brakes

Tektro Mechanical Disc Brakes

Grips

Ergo Brown Faux Leather

Saddle

Selle Royal

Tire Brand

CST City 26 x 2.15

Wheel size

26”

Fenders

Front and Rear Included

Chain

KMC

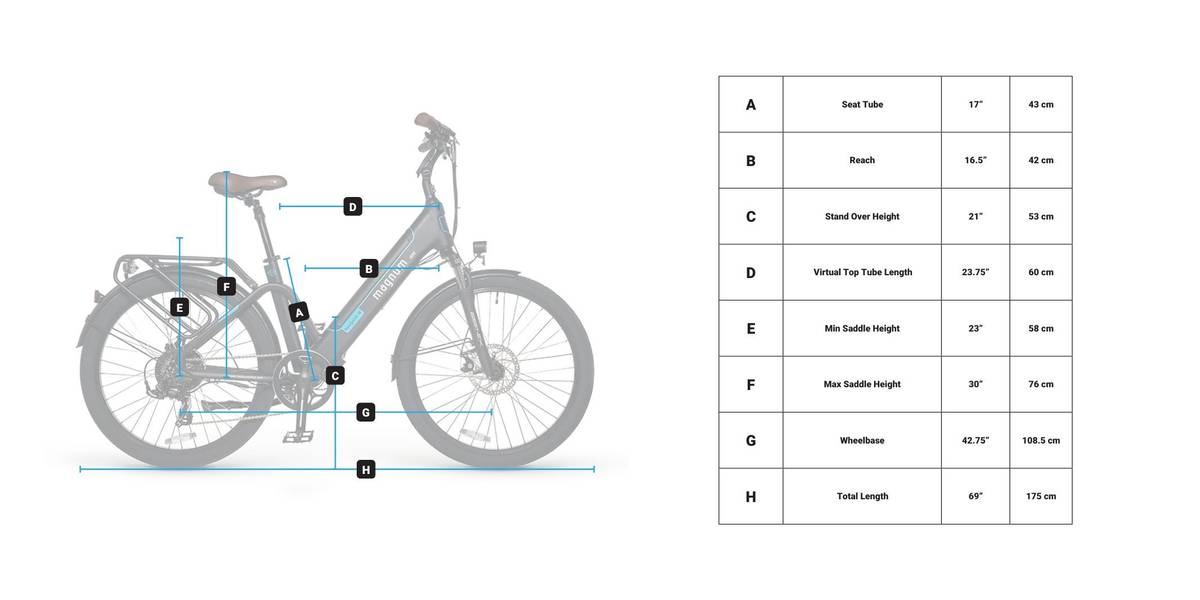

Seat Tube

17” (43 cm)

Reach

16.5” (42 cm)

Stand Over Height

21” (53 cm)

Virtual Top Tube Length

23.75” (60 cm)

Min Saddle Height

23” (58 cm)

Max Saddle Height

30” (76 cm)

Width

25.75” (65 cm)

Wheelbase

42.75” (108 cm)

Length

69” (175 cm)

Total Weight

55 lbs (30 kg)

Battery Weight

7 lbs

Recommended Minimum Rider Height

5’0”

Max Load Capacity

300 lbs. (140 kg)

Kickstand

Center-Mount, Left-Side, Adjustable

Bell

Yes

Charger

48V/2A

Front Rack

Optional Front Rack (Not Included)

Rear Rack

Included

Fenders

Front and Rear

Accessory Mounts

Front and Rear Fender Mounts, Rear Rack Mount

Navigator S videos

  • Technical Overview
  • Explore The Series

In-Depth Review of the Magnum Navigator

An in-depth overview of the Magnum Navigator from a Magnum Bikes technician. The Navigator features a 500W 48V power system, Pedal Assist System, and throttle. It has a fully integrated battery and stands out with its sleek frame design. John reviews specs, parts, features, and films a live test ride.

Navigator Series | Overview And Differences

Our product specialist points out which specs the Navigator S and Navigator X have in common as well as their key differences.
