The Peaks/Mountain E-Bikes/Peak T7

Roll over image to zoom in

Peak T7

  • 750 Watts Power
  • 20Ah Battery
View specs
Select color: Grey

Battery Capacity

$2,999 Sold out

Example payment is based on the listed product price(s) assuming a 48 month term loan and a 9.99% APR. Subject to approval of credit application. Rates range from 0.00% to 29.99% APR. APRs will vary depending on credit qualifications, loan amount, and term. Bread® pay over time loans are made by Comenity Capital Bank.

Free Shipping ($200+ value)

Free shipping on all e-bikes in the Continental U.S.

Professional In-Store Or Easy DIY Assembly

Choose between:
a) Delivery to your local authorized Magnum Dealer with in-store assembly (included);
b) Home delivery & DIY assembly (included); or
c) Home delivery with at-home assembly by a local bike mechanic (starting at $149).

Expert Service & Support

There are so many ways to get in touch with our Support Team! Chat, call, or drop us an email.

Warranty Protection Up To 5 Years

1-Year limited warranty (included), plus extended product protection plans available for 2, 3 and 5 years (starting at $210).

15-Day No Risk Returns

Ride your e-bike up to 10 miles on us. Don’t love it? Enjoy hassle-free returns within 15 days of delivery.

The Magnum Peak T7

The Peak T7 begins where the road ends! It has a torque pedal assist sensor that combines power from the rider and the motor for the ultimate in smoothness and control. A wide range drive train, robust power system make the Peak T7 an ideal choice for trail riding.

Highlights

  • Category Mountain
  • Class Can be configured to a Class 1, 2, or 3 E-Bike.
  • Frame Type High-step, MTB Cross-Country
  • Seating Active
  • Perfect For Gravel / Trails / Off-road

THE BATTERY.

Long-range (up to 65 miles) battery for the freedom and power to tackle longer rides

20Ah

65 Miles (105 Kilometers) Max Range

10 Hours Charge Time

TORQUE-SENSING PEDAL ASSIST

Amplify your effort.

The torque-sensing pedal assist feature adds just the right amount of power from the motor to amplify your effort. It feels just like riding a regular bicycle, but with greater ease and comfort.

Velofox LCD Display

The illuminated LCD display lists Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, and Trip Time.

CST Patrol 27.5 x 2.8 knobby tires

The versatile CST Patrol tires offer the perfect balance of low rolling resistance and great traction to handle a variety of trail conditions.

Logan Hydraulic, 4-Piston Disc Brakes.

Powerful front and rear Logan 4-Piston hydraulic disc brakes provide consistent, controlled stops in all conditions, and prolong rim life.

SR Suntour XCM34-Boost Suspension fork

The SR Suntour XCM34-Boost suspension fork offers 120mm of travel, to smooth out rough terrain.

Microshift A11-X 11-Speed Cassette

The Microshift 11-speed gear cassette offers a wide variety of gear ratios to even out your effort and speed over changing terrain and trail conditions.

Bafang 750W Rear-Mounted Gear Hub Motor

The Bafang gear hub motor provides all the power you need to tackle the toughest trails.

Component Overview

Motor Brand

Bafang

Motor Type

Rear Hub-Drive

Motor Nominal Output

750 Watts

Motor Peak Output

1000 Watts

Battery Brand

Samsung Cells

Battery Voltage

48V

Battery Ah

20Ah

Battery Wh

960Wh

Battery Chemistry

Li-NMC

Battery Charge Time (from empty)

10 Hours

Minimum Range

35 Miles (56 Kilometers)

Maximum Range

65 Miles (105 Kilometers)

Display Type

Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCD

Display Readouts

Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time

Display Accessories

Drive Mode

Torque Sensor Pedal Assist, Thumb Throttle, Walk Mode

Top Speed

Up to 28 mph with Pedal Assist, 20 mph with Throttle

Lights

Front light controlled from the display. Rear light brake activated. Front Light: 40 lux, Rear Light: 20 lux (Rear light not included)

Frame material

Aluminum Alloy

Frame size

19” (48 cm)

Frame Type

Fork Details

XCM34-Boost

Gearing details

A11-X 11-Speed

Shifter Details

A11-X 11-Speed

Crank

Aluminum Alloy, 42T, 170mm

Pedals

Wellgo

Stem

Magnum 60mm

Brakes

Logan Hydraulic Disc Brakes

Grips

Black

Saddle

Selle Royal Essenza+

Tire Brand

CST Patrol 27.5 x 2.8

Wheel size

27.5”

Fenders

Front and Rear Included

Chain

KMC 11-Speed

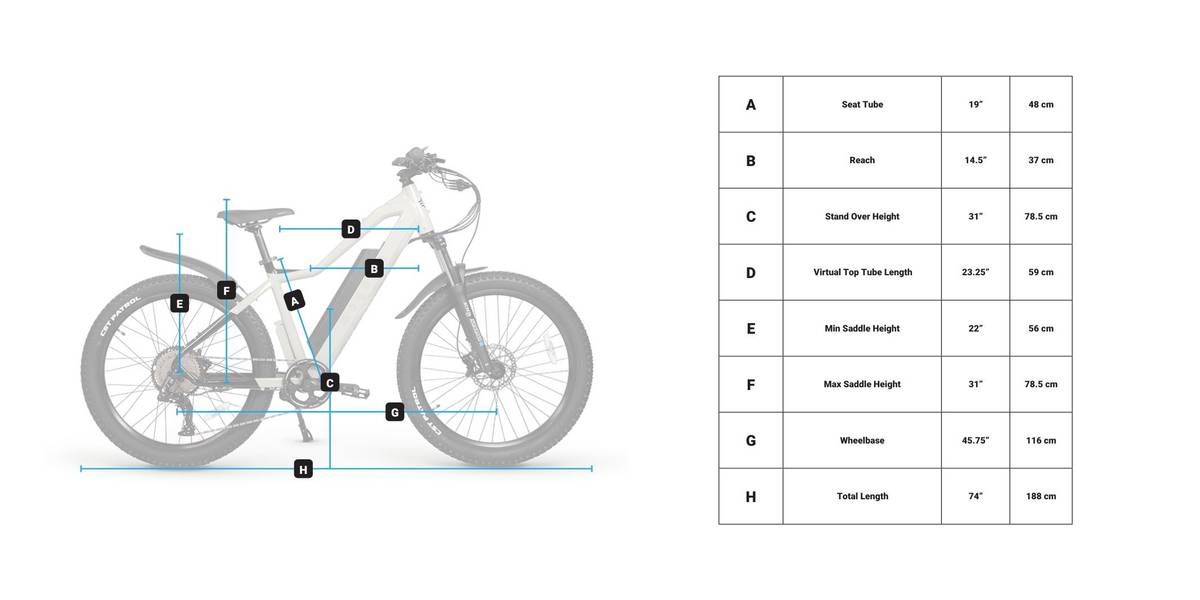

Seat Tube

19” (48 cm)

Reach

14.5” (37 cm)

Stand Over Height

31” (78.5 cm)

Virtual Top Tube Length

23.25” (59 cm)

Min Saddle Height

22” (56 cm)

Max Saddle Height

31” (78.5 cm)

Width

28.75” (73 cm)

Wheelbase

45.75” (116 cm)

Length

74” (188 cm)

Total Weight

66 lbs. (30 kg)

Battery Weight

9 lbs. (4 kg)

Recommended Minimum Rider Height

5’6”

Kickstand

Center-Mounted Single Side Kickstand

Bell

N/A

Charger

48 V / 2 A

Front Rack

Optional Front Rack (Not Included)

Rear Rack

Optional (not included)

Fenders

Front and Rear Included

Accessory Mounts

Top Tube Mounts, Head Tube Mounts, Rear Rack Mounts
