  • NEW FOR 2026

Peak 2.0

  • 500 Watts Power
  • 14.4Ah Battery
View specs
Select color: Stone Blue
$1,899 Sold out online

Example payment is based on the listed product price(s) assuming a 48 month term loan and a 9.99% APR. Subject to approval of credit application. Rates range from 0.00% to 29.99% APR. APRs will vary depending on credit qualifications, loan amount, and term. Bread® pay over time loans are made by Comenity Capital Bank.

UL Certified Battery & Bike

Every Magnum meets the highest electrical safety standards — UL 2271 (battery) and UL 2849 (bike), verified by TUV. Safe, certified, and compliant nationwide.

US-Based Service & Support

There are so many ways to get in touch with our Support Team! Chat, call, or drop us an email.

2-Year Warranty Protection

2-Year limited warranty included, covering frame, electronics, and key components. Plus, optional extended product protection plans available for up to 5 additional years with comprehensive coverage against accidents, mechanical breakdowns, and wear & tear - all with $0 deductible.

The Peak 2.0

The Peak 2.0 picks up where Magnum’s best-selling trail bike left off — and raises the bar. A frame-integrated color display, 140mm SR Suntour suspension fork, and a torque sensor you can toggle to cadence mode on the fly make this the most capable trail bike Magnum has ever built. 10-speed clutched drivetrain, UL-certified battery and electronics, sun-reactive paint — a trail bike that performs as good as it looks.

Highlights

  • Category Mountain
  • Class Class 2 out of the box / Configurable as Class 1, 2, or 3 E-Bike (+ European mode) via display
  • Frame Type High-step
  • Seating Active
  • Perfect For Trails, Gravel, Off-Road, Versatile Commuting

THE BATTERY.

A UL-certified 48V 14.4Ah Samsung battery with 691Wh of capacity — built for long days on the trail or around town. It looks fully integrated and sleek, but removes easily for charging on or off the bike. A built-in battery indicator shows your state of charge at a glance.

14.4Ah

50 miles (80 Kilometers) Max Range

6 Hours Charge Time

RIDE YOUR WAY.

Torque sensor with cadence mode — switchable on the fly

The Peak 2.0 uses a digital torque plate that senses your input and amplifies it — giving you a natural, responsive ride that feels like your legs just got an upgrade. But when you want to cruise without the effort — sprained ankle, lazy Sunday, long flat stretch — toggle to cadence mode right from the display. No tools, no fuss. Just the ride you want, when you want it.

Component Overview

Motor Brand

Sutto by Bafang

Motor Type

Hub-Drive; brushless; planetary geared

Motor Nominal Output

500 Watts

Motor Peak Output

800 Watts

Battery Voltage

48 Volts

Battery Ah

14.4Ah

Battery Wh

720Wh

Battery Chemistry

Samsung 21700, Li-NMC, UL2271 & UL2849 Certified

Battery Charge Time (from empty)

7.5 Hours

Maximum Range

50 miles (80 Kilometers)

Display Type

VeloFox Frame-Integrated Color Display

Display Readouts

Battery Level, Assist Level, Current Speed, Power, Trip Distance, Odometer, Trip Time, 12hr clock

Assist Modes

Torque Sensor Pedal Assist, Cadence Pedal Assist, Thumb Throttle, Walk Mode

Top Speed

Up to 28 mph with Pedal Assist, 20 mph with Throttle

Lights

Integrated 100 lumen front light (rear brake light rack-mounted, available separately)

Frame material

Aluminum Alloy

Frame Type

High-step MTB Trail, Frame-integrated display, integrated battery

Fork Details

SR Suntour XCM 34 BOOST 140mm travel, preload/compression/lockout, through-axle

Gearing details

Microshift Advent X 10-speed with Clutched Derailleur, 11-48T cassette

Shifter Details

Microshift Advent X Trail Pro 10-speed, silicone-padded levers

Crank

Aluminum Alloy 170mm

Pedals

Wide alloy Platform with Reflectors

Stem

Magnum Mountain 60mm Stem

Brakes

Tektro Hydraulic Disc Brakes, 180mm rotors front & rear

Grips

Lock-on ergonomic MTB

Saddle

Selle Royal Essenza +

Tire

CST Patrol 27.5” x 2.8” knobby

Wheel size

27.5 inch

Fenders

Lightweight Front & Rear (included); Full Coverage available

Chain

KMC X10

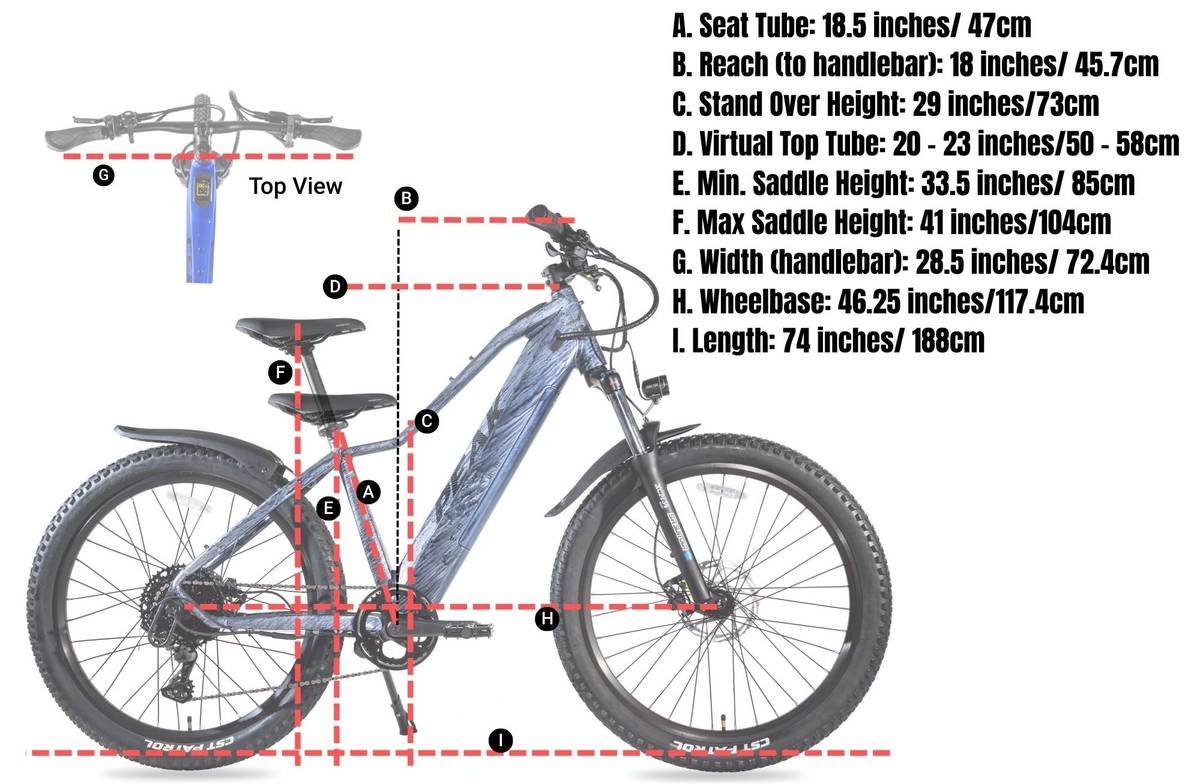

Seat Tube

18½" (47 cm)

Reach

18" (45.7 cm)

Stand Over Height

29" (73 cm)

Virtual Top Tube Length

20–23" (50–58 cm)

Min Saddle Height

33.5" (85 cm)

Max Saddle Height

41" (104 cm)

Width

28.5" (72.4 cm) | Handlebar

Wheelbase

46.25" (117.4 cm)

Length

74" (188 cm)

Total Weight

66 lbs (30 kg)

Battery Weight

9.3 lbs (4.2 kg)

Recommended Minimum Rider Height

Max Load Capacity

330 lbs. (150 kg)

Kickstand

Center-Mounted Single Side Adjustable Length

Bell

Bell with AirTag/M-Tag compatibility (tracking device sold separately)

Charger

54.6V 2A Charger

Front Rack

Compatible with Magnum Multi-Purpose Cargo Basket (basket sold separately)

Rear Rack

Optional — rear carrier rack available (sold separately)

Fenders

Lightweight Front & Rear (included)

Accessory Mounts

Built-In Head Tube and Top Tube Accessory Mounts
