Navigator X

  • 500 Watts Power
  • 12Ah Battery
View specs
Select color: White with Blue Accents

Battery Capacity

$2,199 $1,599
You save $600 (27%)
Sold out

The Magnum Navigator X

A beautifully designed, purpose built electric bike well suited to urban riding or commuting. Step-thru frame for easy mounting and dismounting. Powerful 500W 48V power system with a fully integrated battery.

Highlights

  • Category Touring
  • Class Can be configured to a Class 1, 2, or 3 E-Bike.
  • Frame Type Low-step
  • Seating Relaxed
  • Perfect For Paved / Light Trails / Recreation

THE BATTERY.

The heart of all Magnum bikes, the long range battery blends in smoothly with the frame for a sleek look. It powers up to 50 miles depending on variables like body and cargo weight, terrain, wind direction, and pedal assist level.

12Ah

50 miles (80 Kilometers) Max Range

6.5 Hours Charge Time

SLEEK, LOW-STEP FRAME

Mount and dismount with ease.

The sleek,low-step frame is easy to mount and dismount, and is made of strong and lightweight aluminum.

Component Overview

Motor Brand

Das-Kit

Motor Type

Rear Gear Hub Motor

Motor Nominal Output

500 Watts

Motor Peak Output

750 Watts

Battery Voltage

48V

Battery Ah

12Ah

Battery Wh

576Wh

Battery Chemistry

Li-NMC

Battery Charge Time (from empty)

6.5 Hours

Minimum Range

25 Miles (40 Kilometers)

Maximum Range

50 miles (80 Kilometers)

Display Type

Das-Kit C7, Backlit, Monochrome LCD

Display Readouts

Power Output Indicator(6 Bars), Battery Level (6 Bars), Speed, Assist Level (0-6), Odometer, Trip Distance, Trip Time, Battery Voltage

Drive Mode

Cadence Sensing Pedal Assist, Trigger Throttle, Walk Mode

Top Speed

25 mph with Pedal Assist, 20 mph with Throttle

Lights

Integrated Front and Rear Lights

Frame material

Aluminum Alloy

Frame Type

Fork Details

SR Suntour NEX ATB 26”

Gearing details

Shimano 8-Speed

Shifter Details

Shimano 8-Speed

Crank

Prowheel, 48T, 165mm

Pedals

Wellgo

Stem

Promax Tool-Free Adjustable

Brakes

Tektro Hydraulic Disc Brakes

Grips

Ergo Brown Faux Leather

Saddle

Selle Royal Brown Freeway

Tire Brand

CST 26 x 2.25

Wheel size

26”

Fenders

Front and Rear Included

Chain

KMC

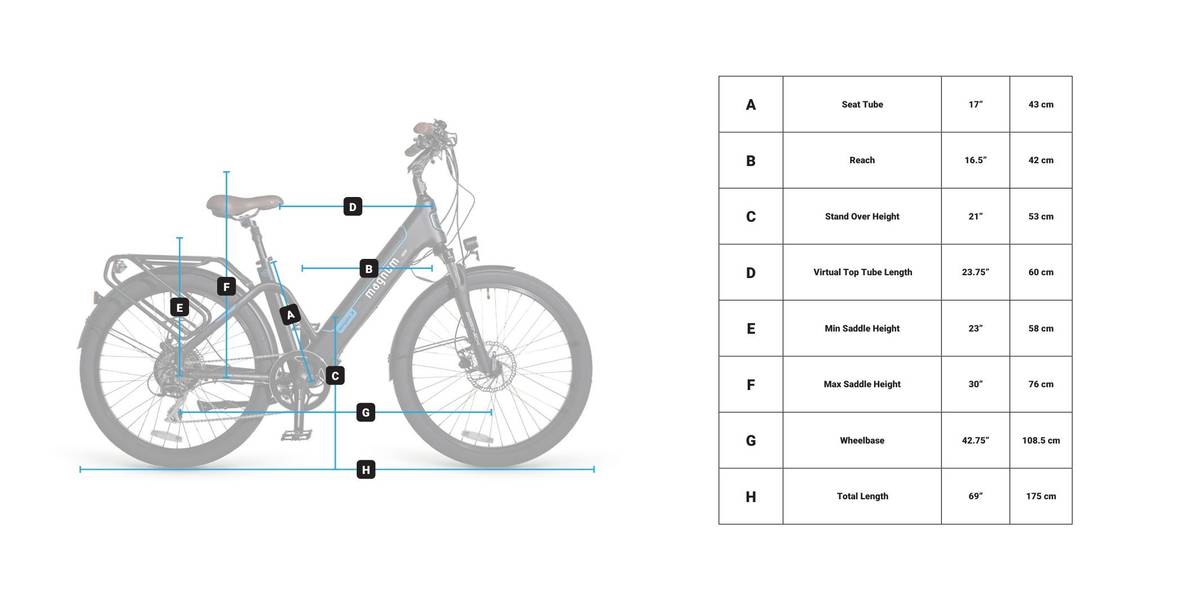

Seat Tube

17” (43 cm)

Reach

16.5” (42 cm)

Stand Over Height

21” (53 cm)

Virtual Top Tube Length

23.75” (60 cm)

Min Saddle Height

23” (58 cm)

Max Saddle Height

30” (76 cm)

Width

25.75” (65 cm)

Wheelbase

42.75” (108 cm)

Length

69” (175 cm)

Total Weight

59 lbs (26.75 kg)

Battery Weight

8 lbs

Recommended Minimum Rider Height

5’0”

Max Load Capacity

300 lbs. (140 kg)

Kickstand

Center-Mount, Left-Side, Adjustable

Bell

Included

Charger

48V/2A

Front Rack

Optional Front Rack (Not Included)

Rear Rack

Included

Fenders

Front and Rear

Accessory Mounts

Front and Rear Fender Mounts, Rear Rack Mount
