Edge

  • 750 Watts Power
  • 15Ah Battery
View specs
Select color: Graphite
$2,099 Sold out online
Pre-Order Details
What You Need to Know
Deposit Required
10% fully-refundable deposit (cancel anytime before shipping)
Expected Ship Date
Ships by August 31, 2025
Order Limit
Maximum 2 bikes per customer
Delivery Options
a) Home Delivery: Easy DIY assembly
b) Ship to Store: In-store pickup with professional assembly
Warranty Protection
2-Year limited warranty | view terms

The Magnum Edge

A bike that redefines off-road adventure! The Magnum Edge combines powerful 750W performance with rugged fat tire capability for trail-conquering riders. Whether you're exploring backcountry trails, hunting remote areas, beach riding, or tackling snow-covered paths, the Edge will power your adventures with confidence, control and capability.

Highlights

  • Category Mountain
  • Class Can be configured to a Class 1, 2, or 3 E-Bike
  • Frame Type High-step
  • Seating Active
  • Perfect For Off-Road Trails / Mountain Paths / Adventure Rides

THE BATTERY.

The heart of the Magnum Edge is the integrated, long-range 48V battery system that powers rides up to 50 miles long, depending on variables like body and cargo weight, terrain, wind direction, and pedal assist level.

15Ah

50 miles (80 Kilometers) Max Range

6.5 Hours Charge Time

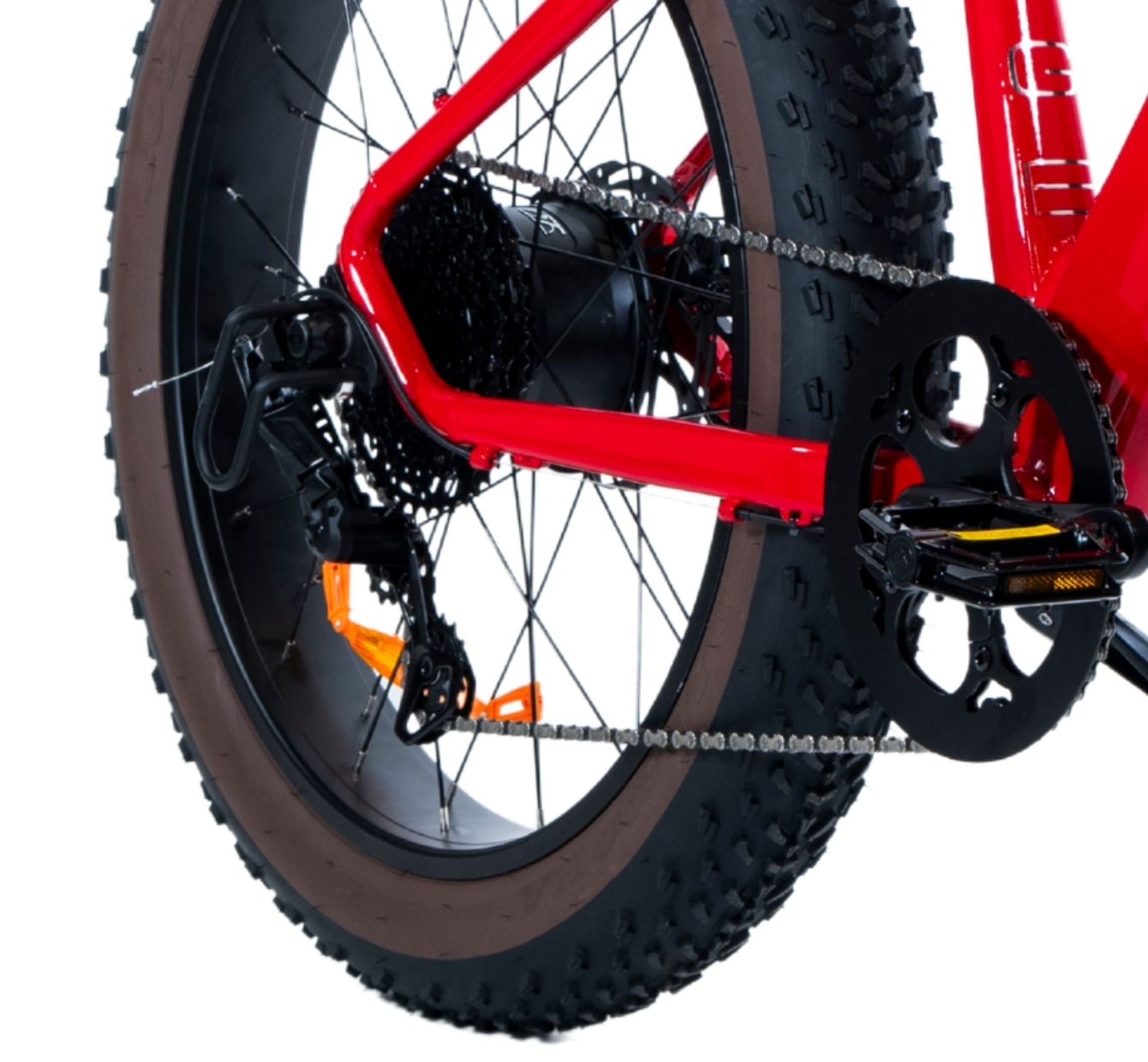

UNSTOPPABLE POWER MEETS UNBEATABLE TRACTION

750W Motor + 4" Fat Tires

The commanding 750W motor delivers the extra power needed to conquer steep climbs and accommodate riders of all sizes, while the massive 4" fat tires provide the traction to power through sand, snow, mud, and rocky terrain. With torque sensor technology providing smooth, intuitive assistance and fat tire stability keeping you in control, you'll experience the most powerful, confidence-inspiring ride we've ever created.

Component Overview

Motor Brand

Sutto

Motor Type

Hub-Drive; brushless; planetary geared

Motor Nominal Output

750 Watts

Motor Peak Output

1,000 Watts

Battery Voltage

48 Volts

Battery Ah

15Ah

Battery Wh

720Wh

Battery Chemistry

Samsung 21700, Li-NMC

Battery Charge Time (from empty)

6.5 Hours

Minimum Range

15 Miles (24 Kilometers)

Maximum Range

50 miles (80 Kilometers)

Display Type

VeloFox Frame-Integrated Color Display

Display Readouts

Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip Time, 24hr clock

Drive Mode

Torque Sensor Pedal Assist, Thumb Throttle, Walk Mode

Top Speed

Up to 28 mph with Pedal Assist, 20 mph with Throttle

Lights

Integrated 80 lumen front light and optional rear light (mounts to optional rear rack)

Frame material

Aluminum Alloy

Frame Type

High-step, Integrated top tube display, integrated battery, one- size- fits- most fat tire mountain frame

Fork Details

FAT-34mm x 26inch wheel, thru-axle, 100mm travel, w/ lock out

Gearing details

Microshift Advent X 10 speed

Shifter Details

Microshift Advent X 10 speed

Crank

Aluminum Alloy 170mm

Pedals

Wide alloy Platform with Reflectors

Stem

Magnum alloy 60mm length, 31.6mm

Brakes

Tektro Hydraulic 180mm rotors

Grips

Lock-on ergonomic MTB

Saddle

Selle Royal Essenza +

Tire Brand

Innova 26 x 4.0 knobby

Wheel size

26 inch

Fenders

Front and rear available (not included)

Chain

KMC X10

Seat Tube

19” (48 cm)

Reach

16.5” (42 cm)

Stand Over Height

29” (74 cm)

Virtual Top Tube Length

25” (64 cm)

Min Saddle Height

34” (86 cm)

Max Saddle Height

41” (104 cm)

Width

28.75” (73 cm)

Wheelbase

47” (119 cm)

Length

75” (190 cm)

Total Weight

80 lbs (36 kg)

Battery Weight

9.3 lbs ( kg)

Recommended Minimum Rider Height

5’4”

Max Load Capacity

330 lbs. (150 kg)

Kickstand

Center-Mounted Single Side Adjustable Length

Bell

Bell with AirTag/M-Tag compatibility (tracking device sold separately)

Charger

54.6V 2A Charger

Front Rack

Compatible with Magnum Multi-Purpose Cargo Basket (basket sold separately)

Rear Rack

Compatible with rear carrier rack (rack sold separately)

Fenders

Compatible with front and rear fenders (fenders sold separately)

Accessory Mounts

Built-In Head Tube and Top Tube Accessory Mounts
