17.5Ah
55 miles (89 Kilometers) Max Range
8.5 Hours Charge Time
Roll over image to zoom in
Scout
Free Shipping ($200+ value)
Free shipping on all e-bikes in the Continental U.S.
Professional In-Store Or Easy DIY Assembly
Choose between:
a) Delivery to your local authorized Magnum Dealer with in-store assembly (included);
b) Home delivery & DIY assembly (included); or
c) Home delivery with at-home assembly by a local bike mechanic (starting at $149).
Expert Service & Support
There are so many ways to get in touch with our Support Team! Chat, call, or drop us an email.
Warranty Protection Up To 5 Years
1-Year limited warranty (included), plus extended product protection plans available for 2, 3 and 5 years (starting at $210).
15-Day No Risk Returns
Ride your e-bike up to 10 miles on us. Don’t love it? Enjoy hassle-free returns within 15 days of delivery.
THE BATTERY.
The heart of the Magnum Scout is the integrated, long-range 48V / 17.5Ah / 840Wh Samsung battery that powers rides up to 55 miles long, depending on variables like body and cargo weight, terrain, wind direction, and pedal assist level.
FEEL THE POWER OF THE MOTOR
750W Bafang Motor
The powerful 750W Bafang Motor peaks at 1000 watts and has 6 modes of pedal assist, for speeds of up to 28 mph. The extra power it produces provides a peppy ride that will climb hills faster and accommodate riders of all sizes.
Component Overview
Motor Brand
BafangMotor Type
Rear Hub-DriveMotor Nominal Output
750 WattsMotor Peak Output
1000 WattsBattery Brand
Samsung CellsBattery Voltage
48 VoltsBattery Ah
17.5AhBattery Wh
840WhBattery Chemistry
Li-NMCBattery Charge Time (from empty)
8.5 HoursMinimum Range
35 Miles (56 Kilometers)Maximum Range
55 miles (89 Kilometers)Display Type
Magnum Branded VeloFox, 8 x 7 cm. Display Screen, Backlit Monochrome LCDDisplay Readouts
Battery Level, Assist Level, Current Speed, Power Output, Trip Distance, Odometer, Range, Trip TimeDisplay Accessories
Drive Mode
Cadence Sensing Pedal Assist, Twist Throttle, Walk ModeTop Speed
Up to 28 mph with Pedal Assist, 20 mph with ThrottleLights
Front light controlled from the display. Rear light brake activated.Frame material
Aluminum AlloyFrame size
18” (46 cm)Frame Type
Fork Details
Compression Clicker with Lockout, Preload AdjustGearing details
Shimano 7-SpeedShifter Details
Shimano 7-SpeedCrank
Aluminum Alloy, 52T, 170mmPedals
WellgoStem
Promax FixedBrakes
Logan Hydraulic Disc BrakesGrips
Black Faux Leather, StitchedSaddle
Comfort Hybrid, Integrated Lift HandleTire Brand
Kenda 26 x 4.0Wheel size
26”Fenders
Front and Rear IncludedChain

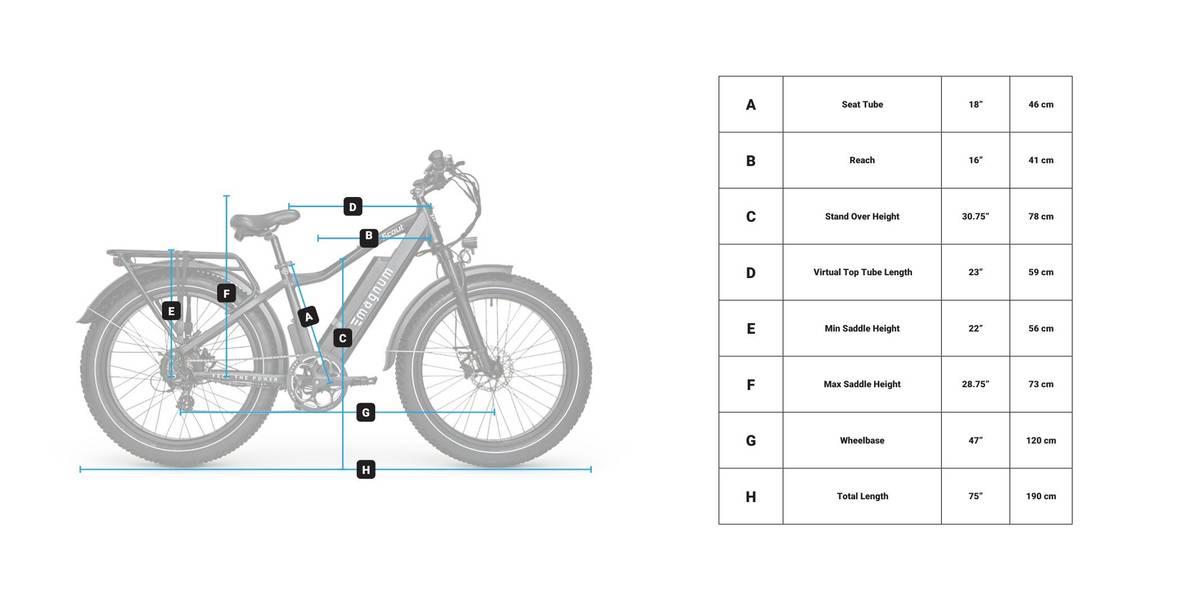

KMC Z-ChainSeat Tube
18" (46 cm)Reach
16" (41 cm)Stand Over Height
30.75" (78 cm)Virtual Top Tube Length
23" (59 cm)Min Saddle Height
22" (56 cm)Max Saddle Height
28.75" (73 cm)Width
28" (70 cm)Wheelbase
47" (120 cm)Length
75" (190 cm)Total Weight
73.5 lbs (33.3 kg)Battery Weight
10 lbs (4.5 kg)Recommended Minimum Rider Height
5’4”
Kickstand
Includes Center-Mount Aluminum Alloy Double Leg KickstandBell
Includes BellCharger
Includes Charger 2 Amp 54.6 Volt (Compatible with 48 Volts Battery)Front Rack
Optional Front Rack (Not Included)Rear Rack
Includes Rear RackFenders
Includes Front and Rear FendersAccessory Mounts
Includes Built-In Head Tube and Top Tube Accessory MountsScout videos
- Technical Overview
- Video Review
In-Depth Review of the Magnum Scout
An in-depth technical overview of the Magnum Scout. The Scout has a powerful 750 Watt motor. It comes standard with a 48V / 17.5 Ah battery and is compatible with Magnum's i6 battery upgrades. Its 4" knobby tires will take you through any terrain on any adventure from mountain to beach. Dive in with our in-house product specialist for a technical overview of all the essential features.
Electric Bike Report's Review of the Magnum Scout
Electric Bike Report was able to spend some quality time with this bike at the 2021 Big Gear Show in Park City, Utah for a quick-hit review of the Scout. This review highlights the Scout's hill-climbing abilities, handling characteristics, and other thoughts and impressions.
